Embroidered Wireless Ball Inclinometer

Mon, 10/05/2009 - 11:35 — AdrianFreed

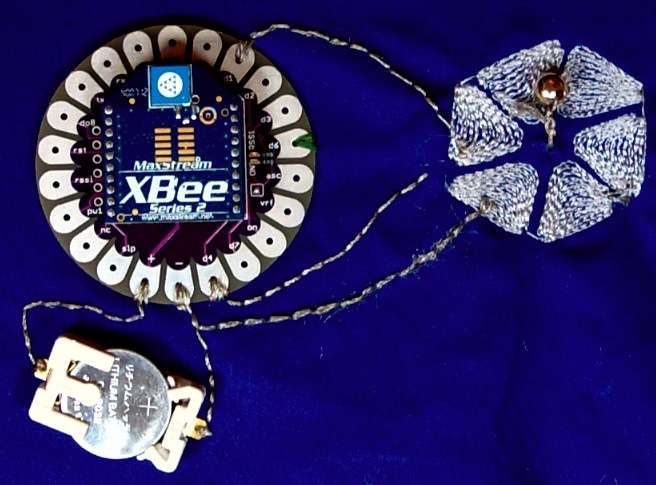

This wireless variant of Hannah Perner Wilson's fabric tilt sensor uses embroidereded high electrical resistance thread . I designed the tool path to create a resistive track from the patches that can be used as a potential divider . This results in a more continuous estimate of the ball location than is suggsted by the six apparently-discrete patches.

Related Link:

Assembly Instructions at CNMAT

Mon, 10/05/2009 - 11:44 — AdrianFreed

Connects underneath the cloth

Connects underneath the cloth to the ball

Mon, 10/05/2009 - 11:43 — AdrianFreed

Fractal Antenna

Fractal Antenna

Mon, 10/05/2009 - 11:42 — AdrianFreed

Power to potential divider is

Power to potential divider is switched in to save power

Mon, 10/05/2009 - 11:40 — AdrianFreed

Back stitched conductive

Back stitched conductive thread

Mon, 10/05/2009 - 11:39 — AdrianFreed

Embroidered patch. Notice

Embroidered patch. Notice thread entry and exit

Mon, 10/05/2009 - 11:38 — AdrianFreed

Lithium Coin Cell Battery

Lithium Coin Cell Battery

Mon, 10/05/2009 - 11:37 — AdrianFreed

Conductive bead

Conductive bead

Mon, 10/05/2009 - 11:36 — AdrianFreed

ZigBee Wireless with ADC

ZigBee Wireless with ADC
